K70TZ100
K70TZ100

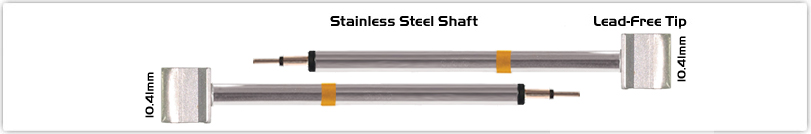

Tweezers Cartridge Pair - Blade Tip 10.41mm (0.41")
ESD
FREE
LEAD
FREE
SPECIFICATIONS
70 Type Cartridge1:
350°C - 398°C
RoHS Compliant2 / Lead Free:
YES
For Use With:
TZ-KIT-3, TMT-2000PS, TMT-2000S-K, TMT-2000S-KM, TMT-2000S-P, TMT-2000S-PM, TMT-2000S-SM, TMT-2000S-TZ
MATERIAL COMPOSITION
All components are RoHS compliant and Lead-Free.
1 Thermaltronics tip cartridges will typically idle within a temperature range of +/-1.1°C. However, there is variation in idle temperature across tip geometries within an individual temperature series. Thermaltronics offers a wide variety of tip geometries from 0.10mm fine point tip to 30mm blade tips. The length and geometry of a tip will have an influence on the tip idle temperature. To accurately measure idle temperature it will depend greatly on the measurement method, technique and equipment used. Two different methods or the use of alternative equipment will produce different test results.
2 Please refer to European Commission for details on RoHS Compliance.
Copyright © 2010-2024 Thermaltronics All Rights Reserved
DESCRIPTION
Based on Curie Heat Technology, Thermaltronics KTZ Series tweezer cartridges are designed for use with Thermaltronics SHP-KTZ tweezer handpiece. 70 Series tips are designed for standard soldering applications.
Tip Style:
Tweezers
Tip Width:
10.41mm (0.41")
Tip Length:
9.00mm (0.35")
