    M60DT004L Drawing

    M60DT004L

    M60DT004L

    Desoldering Tip - Inner Diameter 1.10mm (0.04"), Long Reach

    ESD

    FREE

    LEAD

    FREE

    SPECIFICATIONS

    Arrow Arrow Arrow

    600 Type Cartridge1:

    325°C - 358°C

    RoHS Compliant2 / Lead Free:

    YES

    Equivalent to:

    STDC-004L

    For Use With:

    DS-KIT-1, TMT-9000S-1, TMT-9000S-2, MX-500, MX-5000, MX-5200

    MATERIAL COMPOSITION

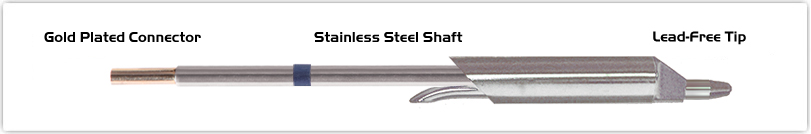

    M60DT004L Product Photo Thermaltronics Solder Tip Cross Section Thermaltronics RoHS Compliance

    All components are RoHS compliant and Lead-Free.

    1 Thermaltronics tip cartridges will typically idle within a temperature range of +/-1.1°C. However, there is variation in idle temperature across tip geometries within an individual temperature series. Thermaltronics offers a wide variety of tip geometries from 0.10mm fine point tip to 30mm blade tips. The length and geometry of a tip will have an influence on the tip idle temperature. To accurately measure idle temperature it will depend greatly on the measurement method, technique and equipment used. Two different methods or the use of alternative equipment will produce different test results.

    2 Please refer to European Commission for details on RoHS Compliance.


    Copyright © 2010-2025 Thermaltronics All Rights Reserved

    DESCRIPTION

    Based on Curie Heat Technology, Thermaltronics MDT Series desoldering tips are designed for use with Thermaltronics DS-GUN-1 desoldering gun handpiece and MX-DS-1 desoldering gun handpiece. 600 Series tips are designed for temperature sensitive soldering applications.


    Tip Style:

    Desoldering

    Tip Width:

    1.10mm (0.04")

    Tip Length:

    18.00mm (0.71")
