T60TZ050
T60TZ050

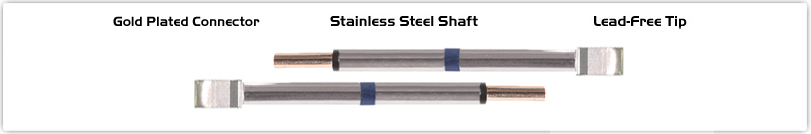

Tweezer Cartridge Pair - Blade Tip 5.0mm (0.20")
ESD
FREE
LEAD
FREE
SPECIFICATIONS
600 Type Cartridge1:
325°C - 358°C
RoHS Compliant2 / Lead Free:
YES
For Use With:
TZ-KIT-2, TMT-5000S-1, TMT-5000S-2
MATERIAL COMPOSITION
All components are RoHS compliant and Lead-Free.
1 Thermaltronics tip cartridges will typically idle within a temperature range of +/-1.1°C. However, there is variation in idle temperature across tip geometries within an individual temperature series. Thermaltronics offers a wide variety of tip geometries from 0.10mm fine point tip to 30mm blade tips. The length and geometry of a tip will have an influence on the tip idle temperature. To accurately measure idle temperature it will depend greatly on the measurement method, technique and equipment used. Two different methods or the use of alternative equipment will produce different test results.
2 Please refer to European Commission for details on RoHS Compliance.
Copyright © 2010-2025 Thermaltronics All Rights Reserved
DESCRIPTION
Based on Curie Heat Technology, Thermaltronics TTZ Series tweezer cartridges are designed for use with Thermaltronics SHP-TTZ tweezer handpiece. 600 Series tips are designed for temperature sensitive soldering applications.
Tip Style:
Tweezers
Tip Width:
5.00mm (0.20")
Tip Length:
9.00mm (0.35")
