Home > Products > TMT-9000S Soldering and Rework Station

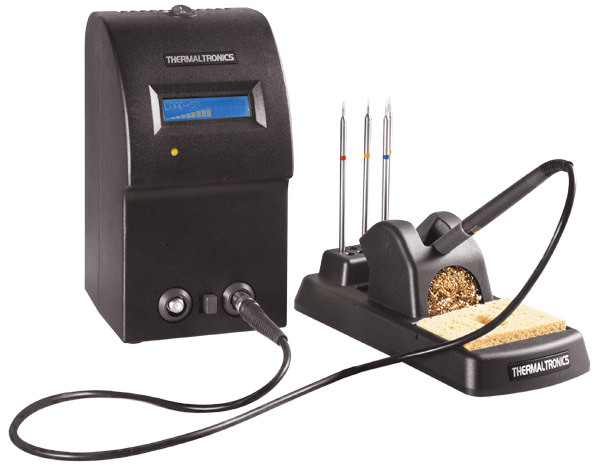

TMT-9000S Soldering and Rework System
TMT-9000S Soldering & Rework Station
ESD Safe    RoHS Compliant
The TMT-9000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
  High thermal recovery & performance.
  13.56MHz power supply with built-in LCD display.
  Dual switchable soldering ports.
  No calibration or operator training required.
  No additional coil assembly costs.
TMT-9000S SPECIFICATIONS
Input Line Voltage: TMT-9000PS-1 100-110 VAC
TMT-9000PS-2 220-240 VAC
Tip to Ground Potential: <2mV, true RMS 50-500Hz
Tip to Ground Resistance: <2 Ohms DC
Idle Temperature Stability: +/- 1.1°C (2°F)
Ambient Operating Temperature: 10-40 °C (50°F -104°F)
Maximum Enclosure Temperature: 50°C (122°F)
Fuse: TMT-9000PS-1 125V 1A
TMT-9000PS-2 250V 0.5A
Output Power (Maximum): 40 Watts
Output Frequency: 13.56 MHz
Size (W x H x D): 212.4mm x 118mm x 132mm
Weight: 3.47 KG
LCD display: 60.0mm x 16.0mm
Input Line Frequency: 50/60 Hz
CERTIFICATION MARKS
TMT-9000S TUV CE Certified  TMT-9000S TUV NRTL Certified  TMT-9000S TUV GS Certified
PACKING LIST
TMT-9000PS Power Supply
SHH-1 Soldering Handpiece Holder
SHP-1 Soldering Handpiece
RMP-1 Tip Removal Pad
SG-1-GR Handpiece Grip Green
SG-1-GY Handpiece Grip Gray
BC-1 Brass Curls
SPG-1 Sulphide Free Sponge
M7CH176 Soldering Tip Cartridge

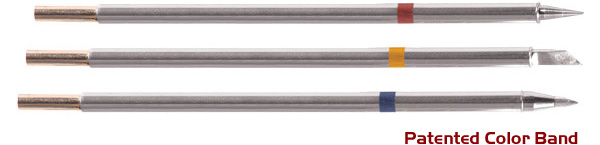

M SERIES - TIP CARTRIDGES
M Series (For use w/TMT-9000S)
