1 Year Warranty - $304.50

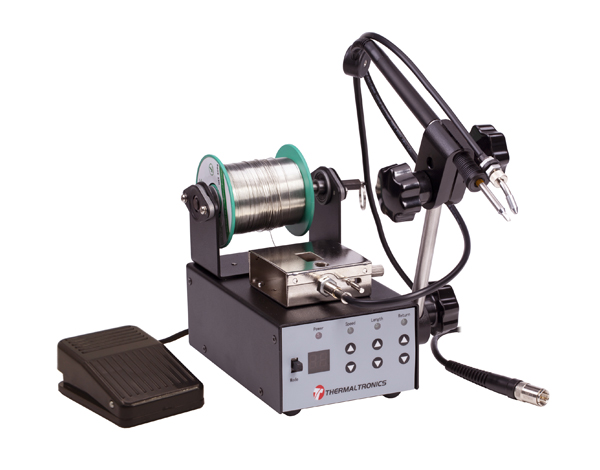

Thermaltronics AF-KIT auto solder feeder kit provides for single handed operation during soldering applications. The kit is provided as an accessory to existing Thermaltronics hand soldering tools.
Adjustable speed, feed length
Adjustable feed retraction
Use of step motor allows precision control
Increases efficiency
AF-KIT1 SPECIFICATIONS
| Input Line Voltage: | 100-240 VAC | |
| Output Line Voltage: | 18VDC, 2A | |
| Solder Feed Time | 0 - 3 seconds | |
| Solder Feed Speed | 0 - 14mm/sec | |
| Solder Feed Quantity | 0 - 14mm/sec | |
| Solder Return Quantity | 0 - 14mm/sec | |
| Solder Feed Mode | Single / Continuous | |
| Usable Solder Diameter | Φ0.6, Φ0.65, Φ0.8, Φ1.0, Φ1.2, Φ1.6mm | |
| Size (W x H x D): | 150mm x 165mm x 130mm | |
| Weight: | 1.5 KG | |
| Input Line Frequency: | 50/60 Hz | |
| 1AF-KIT-1 for use on TMT-9000S, AF-KIT-2 for use on TMT-5000S, AF-KIT-3 for use on TMT-2000S | ||
CERTIFICATION MARKS
|
PACKING LIST
| TMT-AF100 | Auto Solder Feeder |
| AF-HDL-X2 | Handpiece Holder |
| AF-HPK-X3 | Guide Pipe Assembly |
| AF-NOZ-1 | Nozzle Pack |
| AF-PEDAL-1 | Auto Feeder Switch |
| AF-POWER-1 | AC Power Adapter |
|
2AF-HDL-1 for use on TMT-9000S, AF-HDL-2 for use on TMT-5000S, AF-HDL-3 for use on TMT-2000S 3AF-HPK-1 for use on TMT-9000S, AF-HPK-2 for use on TMT-5000S, AF-HPK-3 for use on TMT-2000S *Soldering Handpiece sold separately in AF-KIT-1,AF-KIT-2, AF-KIT-3. Please see System Configurations below.. |
|
SYSTEM CONFIGURATIONS
Part Number
Description
AF-KIT-1
Autosolder Feeder Kit for TMT-9000S
AF-KIT-1M
Autosolder Feeder Kit w/SHP-1 ESD Soldering Handle for TMT-9000S
AF-KIT-2
Autosolder Feeder Kit for TMT-5000S
AF-KIT-2T
Autosolder Feeder Kit w/SHP-T ESD Soldering Handle for TMT-5000S
AF-KIT-3
Autosolder Feeder Kit for TMT-2000S
AF-KIT-3K
Autosolder Feeder Kit w/SHP-K ESD Soldering Handle for TMT-2000S
AF-KIT-3KM
Autosolder Feeder Kit w/SHP-KM ESD Soldering Handle for TMT-2000S
AF-KIT-3P
Autosolder Feeder Kit w/SHP-P ESD Soldering Handle for TMT-2000S
AF-KIT-3PM
Autosolder Feeder Kit w/SHP-PM ESD Soldering Handle for TMT-2000S
AF-KIT-3SM
Autosolder Feeder Kit w/SHP-SM ESD Soldering Handle for TMT-2000S
