Products
1 Year Warranty - $241.50

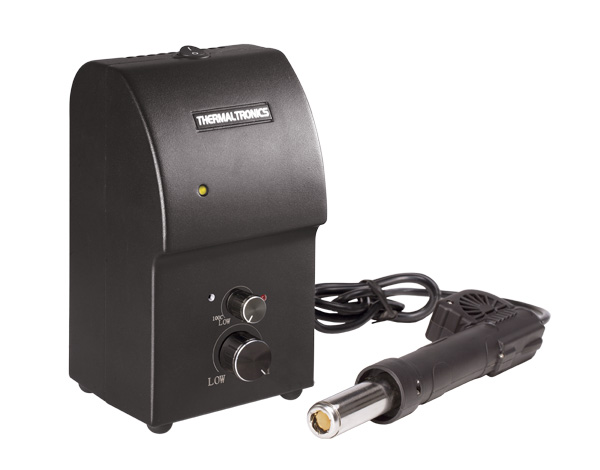

The TMT-HA200 hot air tool can be used for surface mount component removal and reflow on components such as SOIC, CHIP, QFP, PLCC and others.
Auto sleep activated when hot air tool is placed in the holder.
Lightweight and compact, takes up minimal table space.
Large selection of high quality nozzles.
Adjustable, easy to use temperature and air control knobs.
TMT-HA200 SPECIFICATIONS
| Input Line Voltage: | 220-240 VAC | |
| Power: | 600 Watts | |
| Temperature Range: | 100°C - 480°C | |
| Pump: | Turbine Fan | |
| Airflow (Max) | 35L / min | |
| Fuse: | 250V 3A | |
| Size (W x H x D): | 112mm x 205mm x 117mm | |
| Weight: | 2.4 KG | |
CERTIFICATION MARKS
|
PACKING LIST
| TMT-HA200 | Hot Air Tool |
| HTN-D30 | Nozzle 3.0mm (0.12") |
| HTN-D50 | Nozzle 5.0mm (0.20") |
| HTN-D80 | Nozzle 8.0mm (0.31") |
| HTN-D10 | Nozzle 10.0mm (0.39") |
| HA-HE200 | Heating Element |
